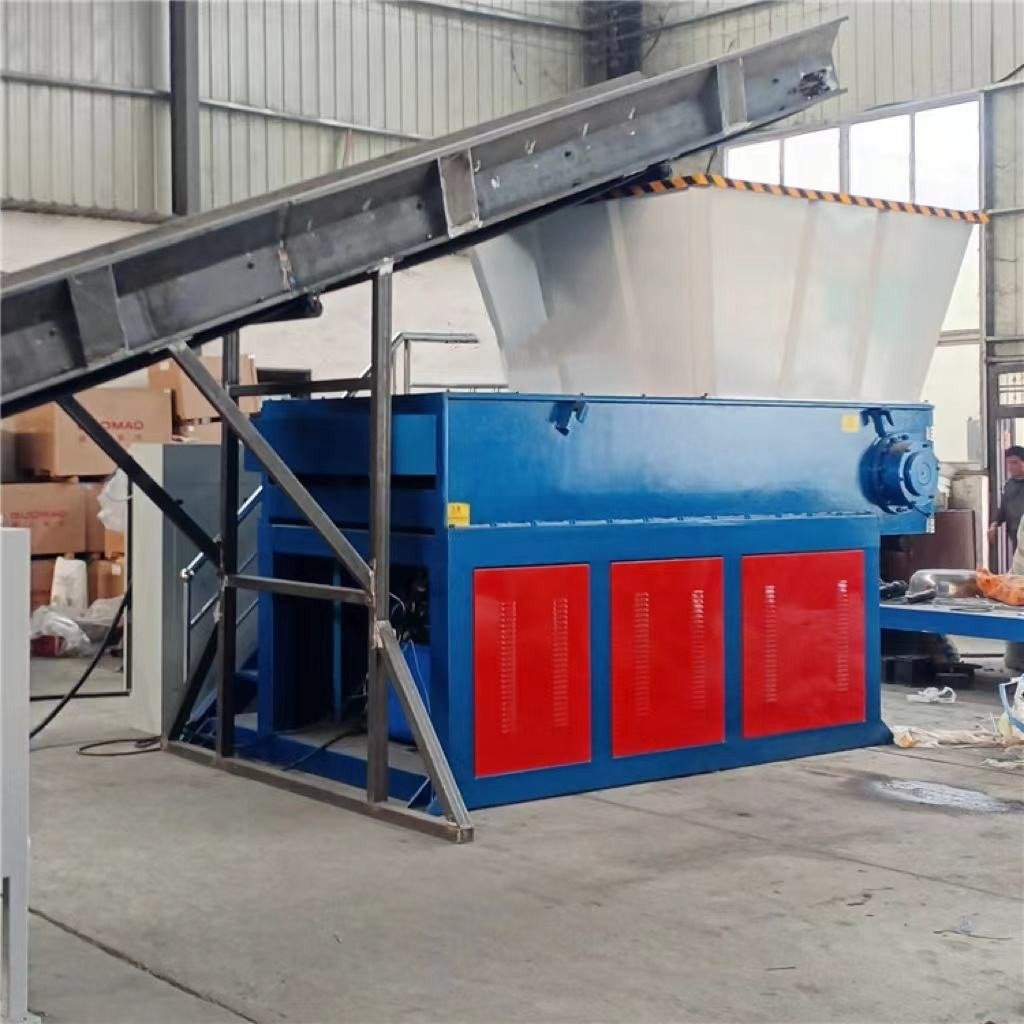

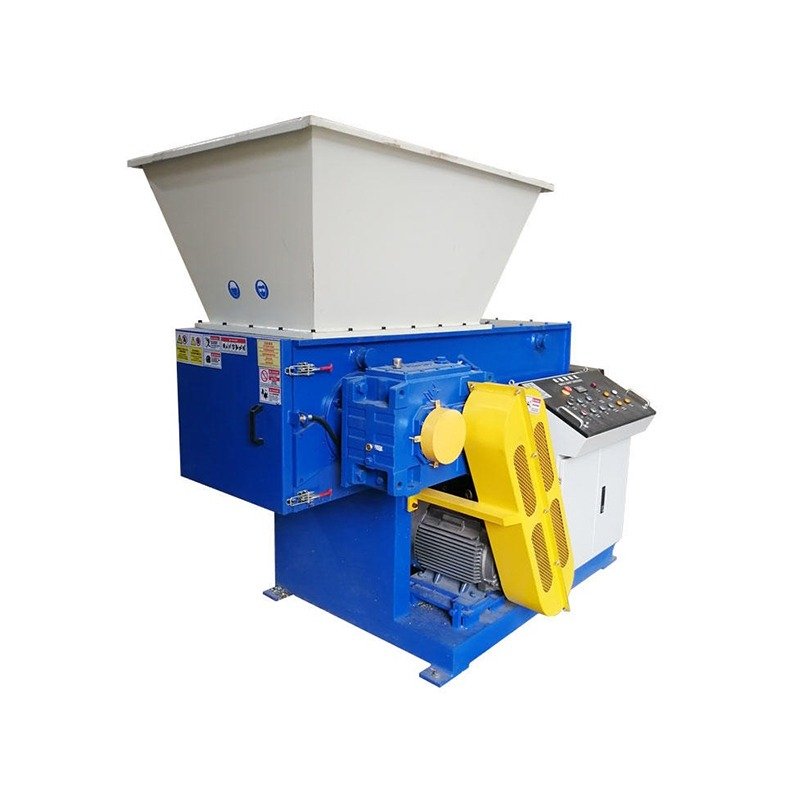

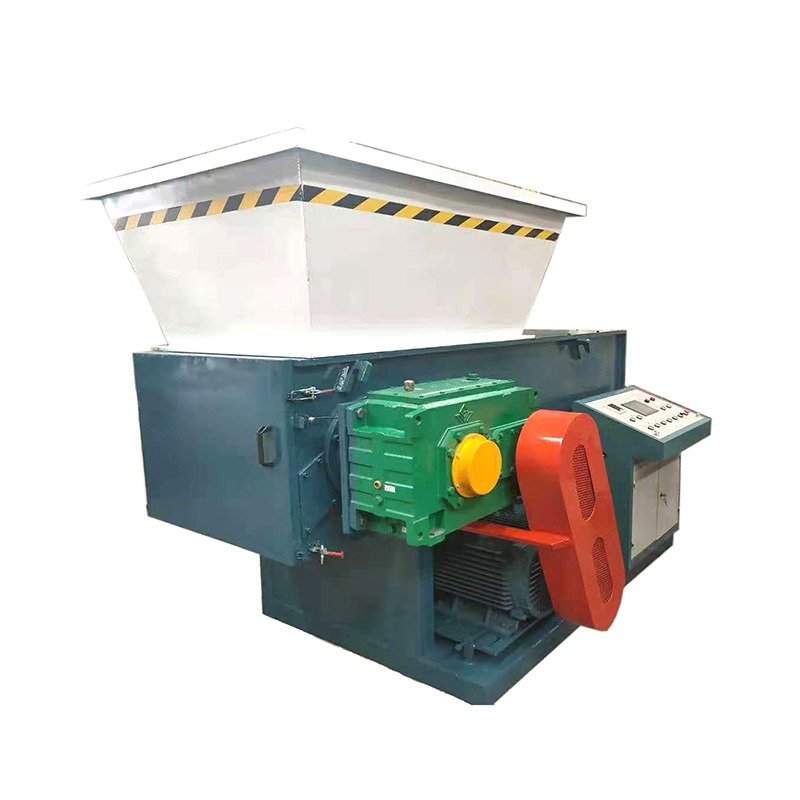

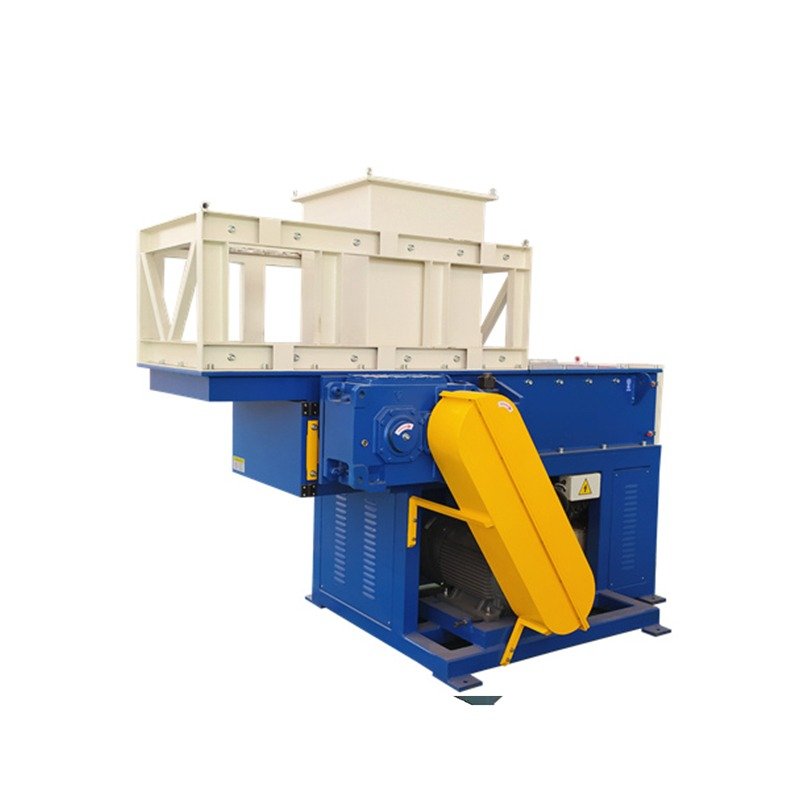

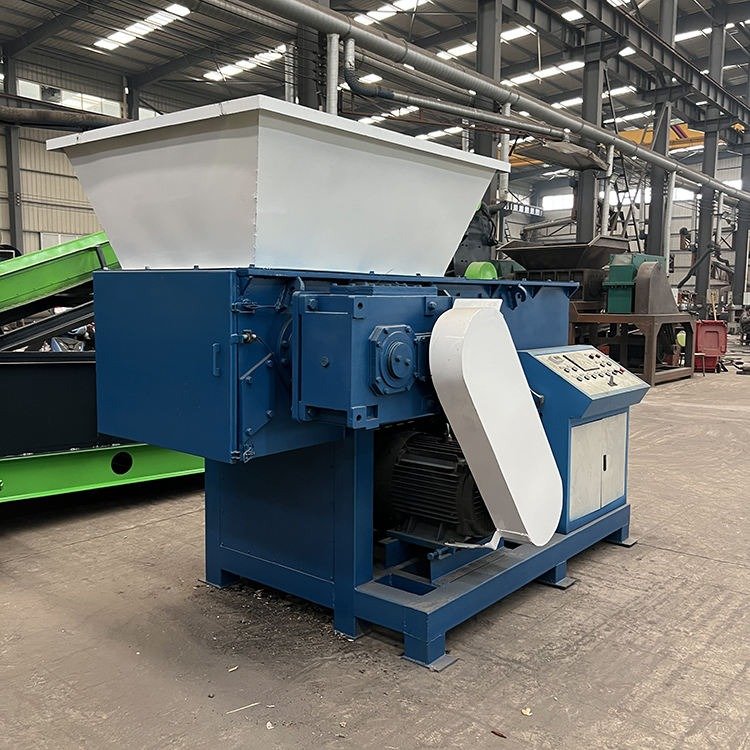

Single Shaft Shredder for Recycling & Size Reduction
Haitem single shaft shredders are engineered for precise size reduction of plastic blocks, pipes, films, wood, textiles, rubber and other industrial waste in recycling lines. High-torque rotor, hydraulic pusher and interchangeable screens ensure high throughput, controlled output size and stable 24/7 operation. Key Specs:- Models: SHT600 ~ SHT1500
- Main Shaft Length: 600 – 1500 mm
- Motor Power: 22 – 132 kW
- Screen Mesh: 30 – 120 mm
- Cutting Chamber: 600×600 – 1530×1800 mm
TECHNICAL PARAMETERS
| Model | SHT600 | SHT800 | SHT1000 | SHT1200 | SHT1500 |
|---|---|---|---|---|---|
| Main Shaft Length (mm) | 600 | 800 | 1000 | 1200 | 1500 |
| Main Shaft Tactical Diameter (mm) | 280 | 400 | 400–500 | 400–500 | 500 |
| Main Shaft Speed (rpm) | 78 | 78 | 78 | 78 | 78 |
| Ram Travel (mm) | 600 | 800 | 1000 | 1200 | 1500 |
| Rotor Blades (pcs) | 39 | 51 / 57 | 63 / 92 | 81 / 116 | 99 |
| Fixed Blades (pcs) | 2 | 2 | 3 | 4 | 4 |
| Motor Power (kW) | 22 | 37 | 55 / 75 | 75 / 90 | 132 |
| Hydraulic Power (kW) | 2 | 3 | 4 | 7.5 | 11 |
| Screen Mesh Diameter (mm) | 30–80 | 30–80 | 30–120 | 30–120 | 30–120 |
| Cutting Chamber Dimension (mm) | 600 × 600 | 800 × 800 | 1000 × 1000 | 1200 × 1250 | 1530 × 1800 |
| Overall Dimension (L × W × H) (mm) | 1750 × 1400 × 1780 | 2430 × 1720 × 2480 | 2880 × 2180 × 2570 | 3350 × 2300 × 2660 | 3500 × 2870 × 2700 |
| Weight (kg) | 2800 | 5000 | 7000 | 8000 | 10000 |
Industrial Shredders with Local Support Near You
Haitem works with trusted partners in India, Vietnam, the UK, Australia, and many other regions to provide faster communication, technical guidance, installation support, and after-sales service. Contact us to get connected with your nearest local representative.
KEY ADVANTAGES OF OUR SINGLE SHAFT SHREDDER
Haitem single shaft shredders combine robust construction, efficient cutting technology and intelligent control to deliver stable, long-term performance in demanding recycling and size-reduction applications.

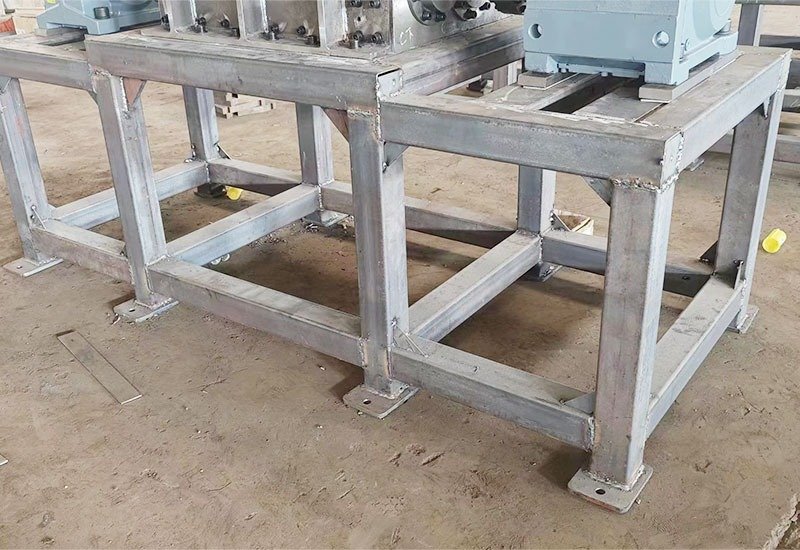

Robust Construction
The base frame and support structure are manufactured from heavy-duty steel profiles to withstand high torque and impact loads. This guarantees long service life, minimal deformation and reliable operation in continuous production.

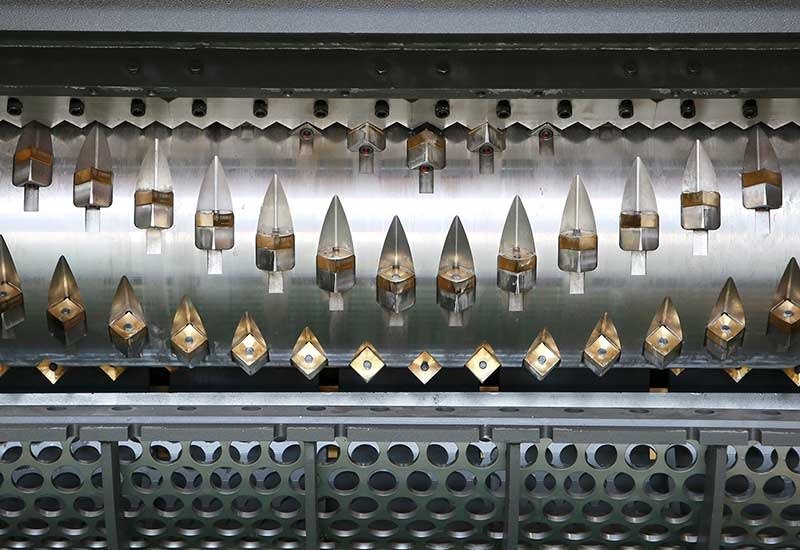

Efficient Single Shaft Design
The single rotor, equipped with cutting tools along its circumference, generates a strong shearing and tearing action. This design simplifies the machine layout while maintaining high throughput and reducing maintenance requirements compared with multi-shaft systems.

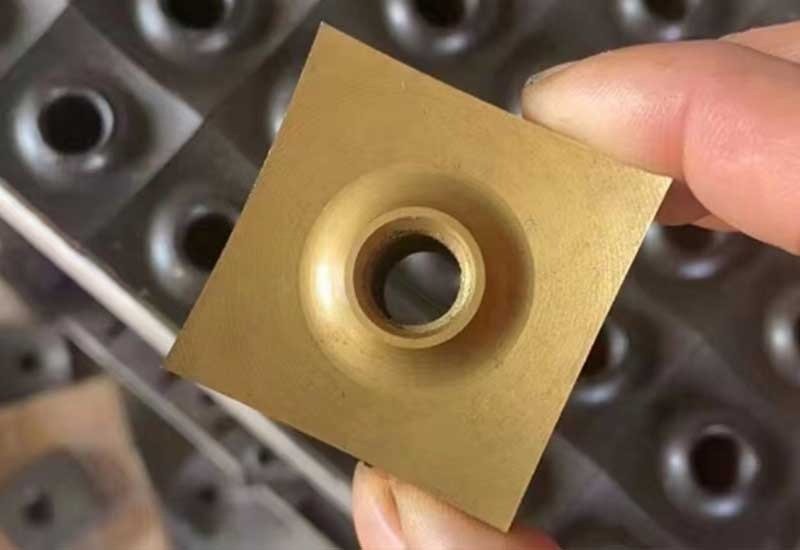

High-Strength Cutting Blades
Cutting blades are made from high-quality alloy steel and heat-treated for hardness and wear resistance. Optimized geometry ensures sharp cutting edges, high efficiency and long blade life even when processing abrasive or tough materials.
Customizable Cutting Chamber
The cutting chamber can be tailored to different material sizes and feeding methods. Adjustable screen openings allow flexible control of output particle size, enabling both coarse and fine shredding with one machine.

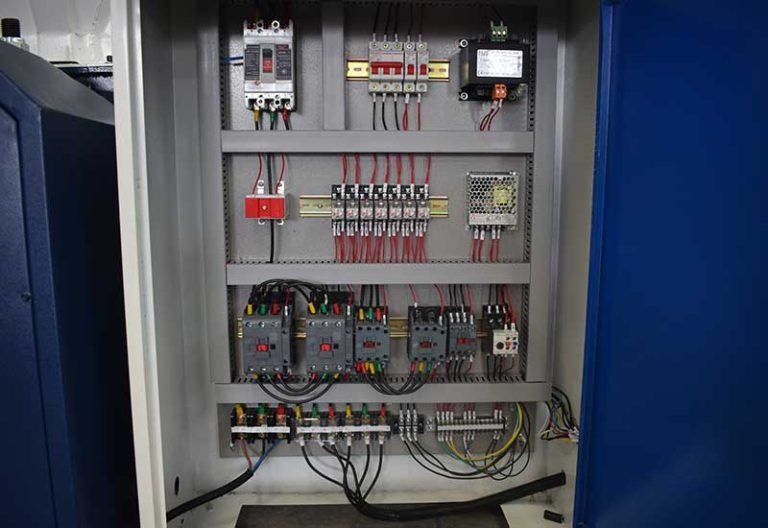

Comprehensive Safety Features
The shredder is equipped with emergency stop buttons, interlocked doors, overload protection and safety guards. These measures protect operators and prevent unauthorized access to moving parts during operation.
Intelligent Control System
An advanced control panel provides real-time monitoring of motor load, temperature and running status. Functions such as auto-reverse and automatic lubrication help prevent jams, reduce downtime and keep the shredder running smoothly.
APPLICATIONS OF INDUSTRIAL SHREDDER MACHINE
Haitem industrial shredders are engineered to process a wide range of waste streams, helping customers reduce volume, improve recycling efficiency, and prepare materials for further treatment or disposal.
Wood Waste & Pallets
Shredding of wooden pallets, offcuts, furniture and packaging wood for volume reduction or biomass fuel.
Mixed Scrap in General
Treatment of light metal scrap and mixed industrial residues to obtain uniform, easy-to-handle fractions.
Electronic & Electrical Waste
Size reduction of e-waste such as cables, small appliances and electronic components for further separation.
Municipal & Commercial Waste
Pre-shredding of mixed household and commercial waste collected in bins to improve downstream sorting.
Waste Tires & Rubber
Primary shredding of car and truck tires for further granulation, energy recovery or recycling processes.
Industrial Shredders with Local Support Near You
Haitem works with trusted partners in India, Vietnam, the UK, Australia, and many other regions to provide faster communication, technical guidance, installation support, and after-sales service. Contact us to get connected with your nearest local representative.
Factory & Processing Workshop
Real manufacturing environment showcasing machining, assembly and quality inspection of Haitem industrial shredders.
Successful Shredder Projects
Haitem industrial shredders have been commissioned in different regions and working conditions, supporting quarrying, recycling and waste-treatment projects for our global customers.
Project in Malaysia
Integrated shredding line for local aggregates and recycling applications.
Project in Europe
Heavy-duty shredding system designed for high throughput and stable performance.
Project in Malaysia
Customized layout adapted to the customer’s existing conveying and screening system.
Global Local Support
Local Support in Key Regions
We provide localized technical assistance in several regions to help customers communicate faster and receive smoother project support.
To offer faster and more efficient service, Haitem works with trusted local technical partners globally, including India, Vietnam, UK & Australia, and other regions.
Our local support teams help with early project discussions, model selection, installation guidance, and after-sales coordination — ensuring that your tire shredding project runs smoothly from start to finish.
When sending your inquiry, mention your country (e.g., India project / UK project) so we can connect you to the nearest support team.
